iFlyer 3D Route Planning Platform for Power Transmission

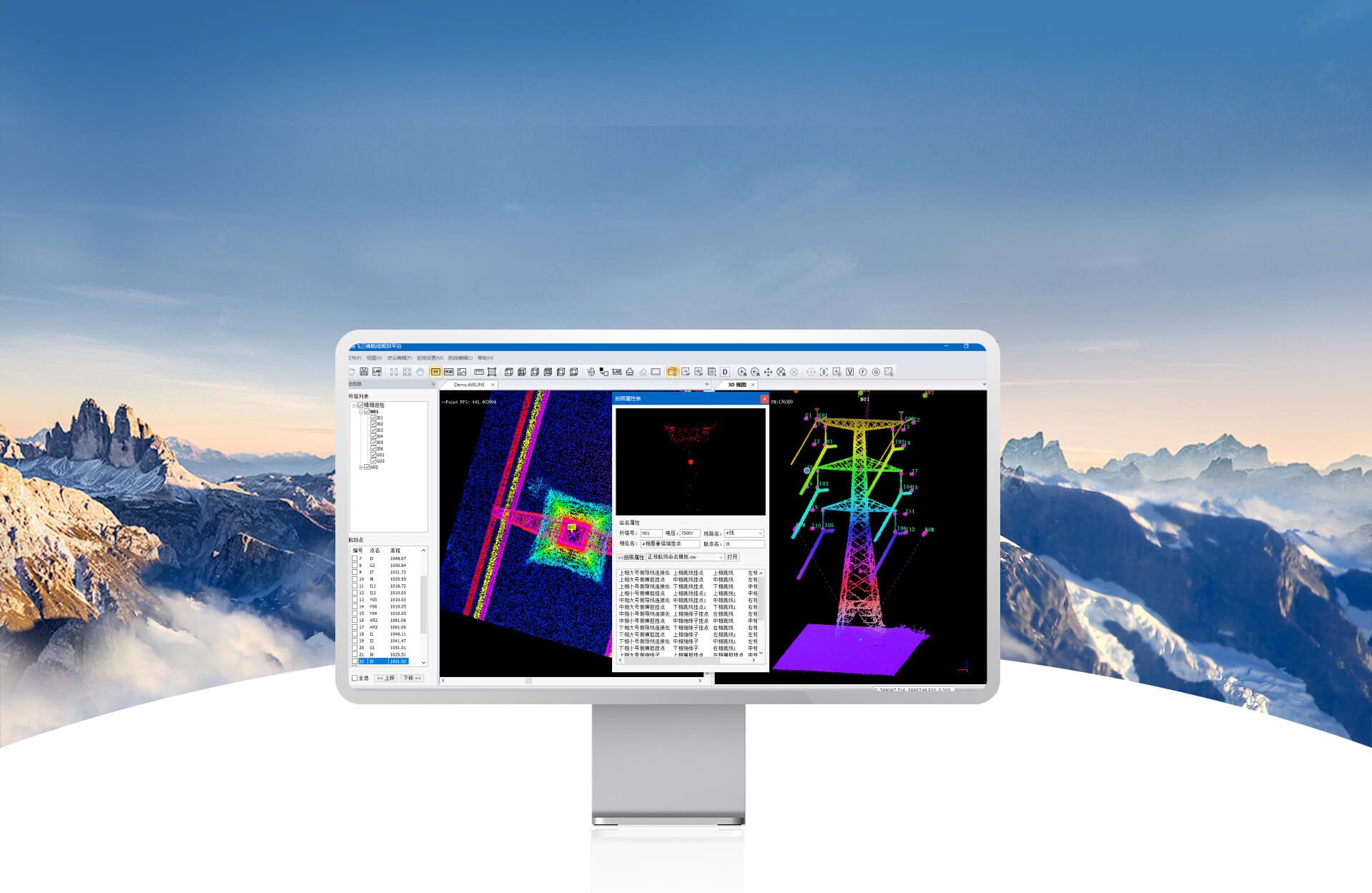

3d_display

iFlyer 3D Route Planning Platform for Power Transmission

iFlyer 3D route planning platform for power  transmission is a PC-based three-dimensional route planning platform based on point cloud models, which utilizes high-precision 3D laser point cloud data of electric transmission line to conduct fully automatic route planning on the basis of comprehensive consideration of the flight characteristics of multi-rotor UAVs, and outputs route planning results of high-precision geographic coordinates for automatic operation of multi-rotor UAVs.

Workflow of automatic inspection

Collecting point cloud data
Collecting point cloud data
Importing into the system for processing
Importing into the system for processing
Planning the route intelligently
Planning the route intelligently
Generating routes for automatic inspection
Generating routes for automatic inspection

Efficient route planning starts now

Fast loading of massive point clouds
Fast loading of massive point clouds

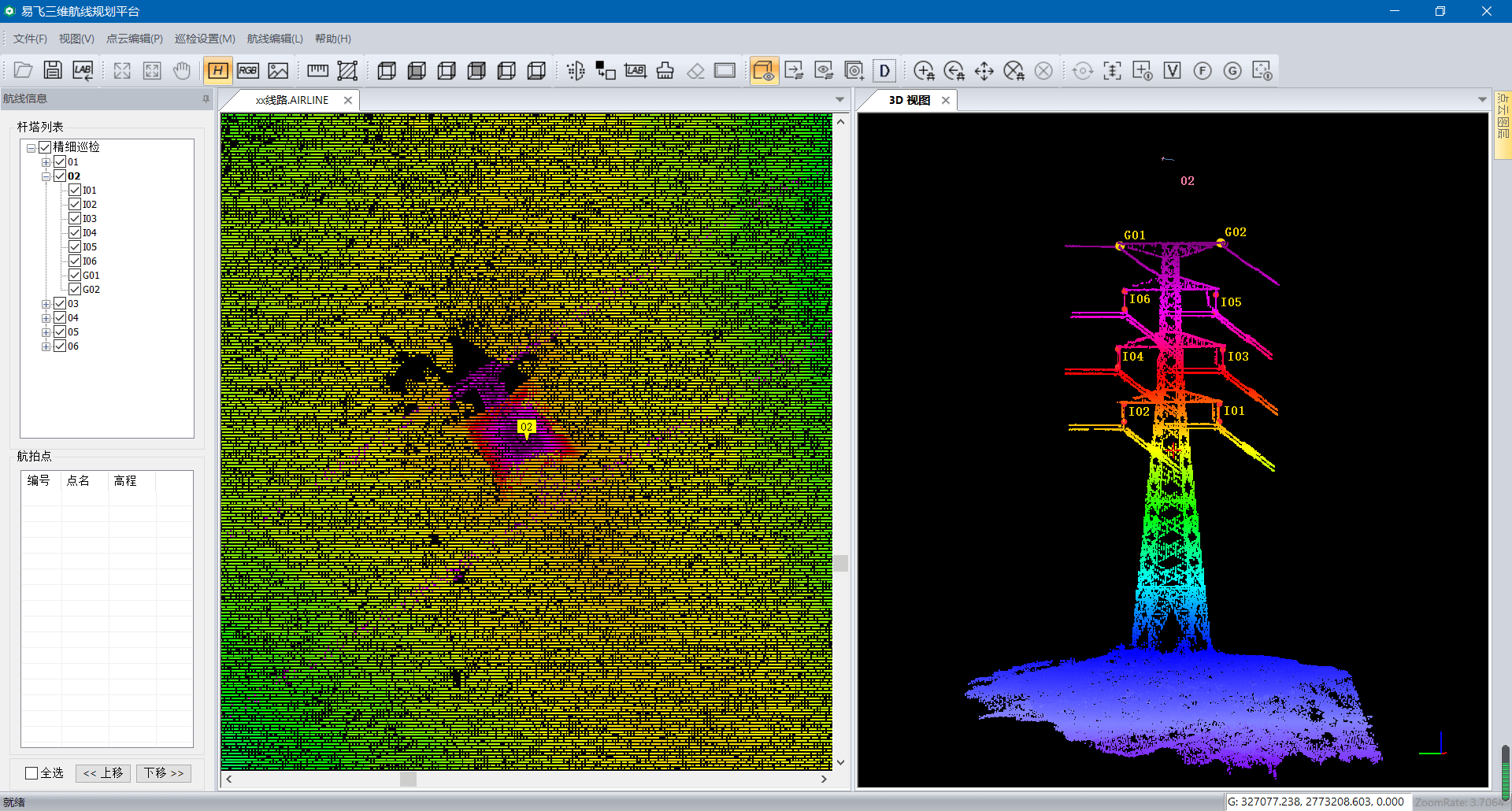

Automatic extraction of tower/line key components
Automatic extraction of tower/line key components

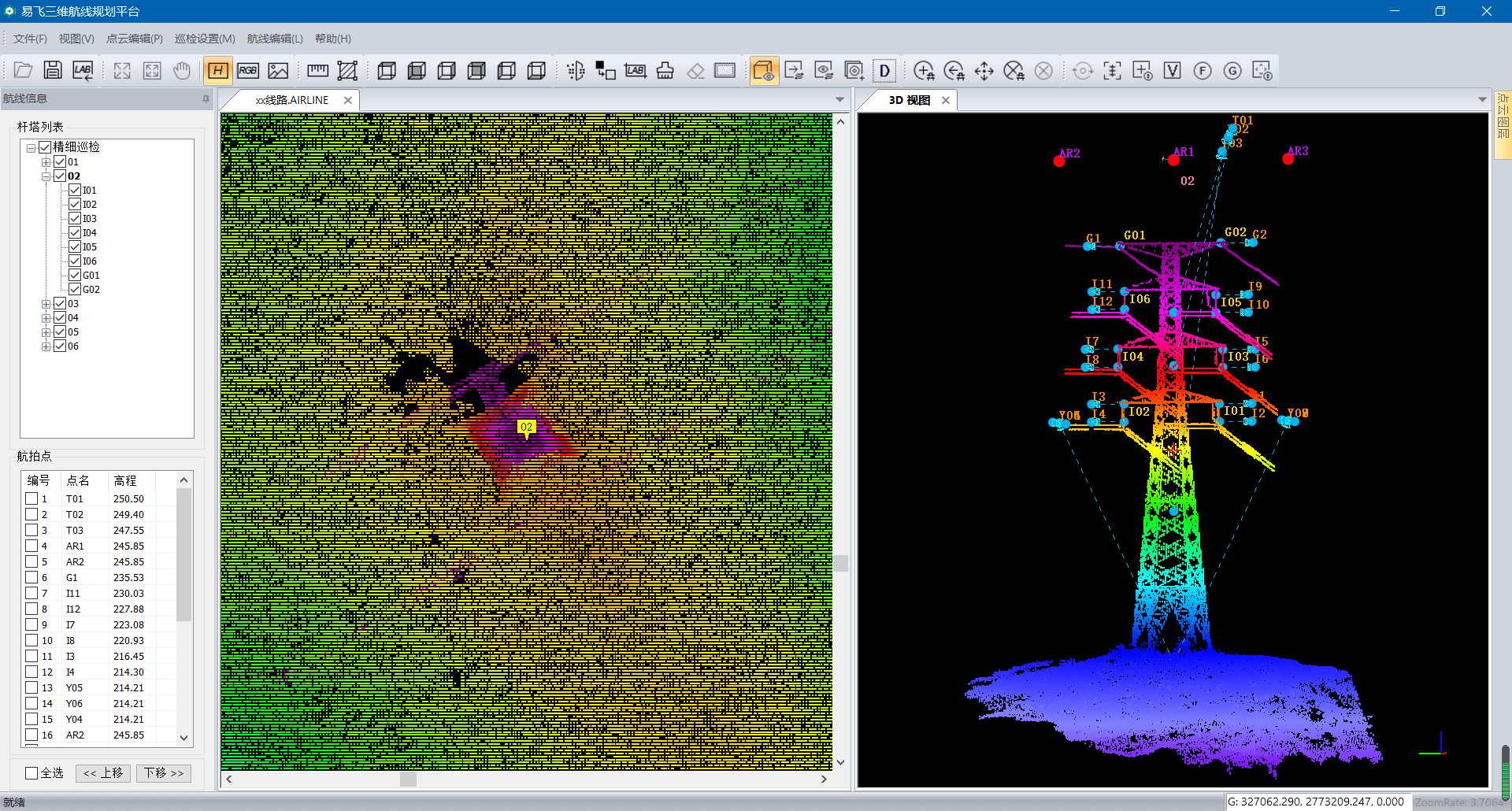

Automatic completing task planning of fine/channel
Automatic completing task planning of fine/channel

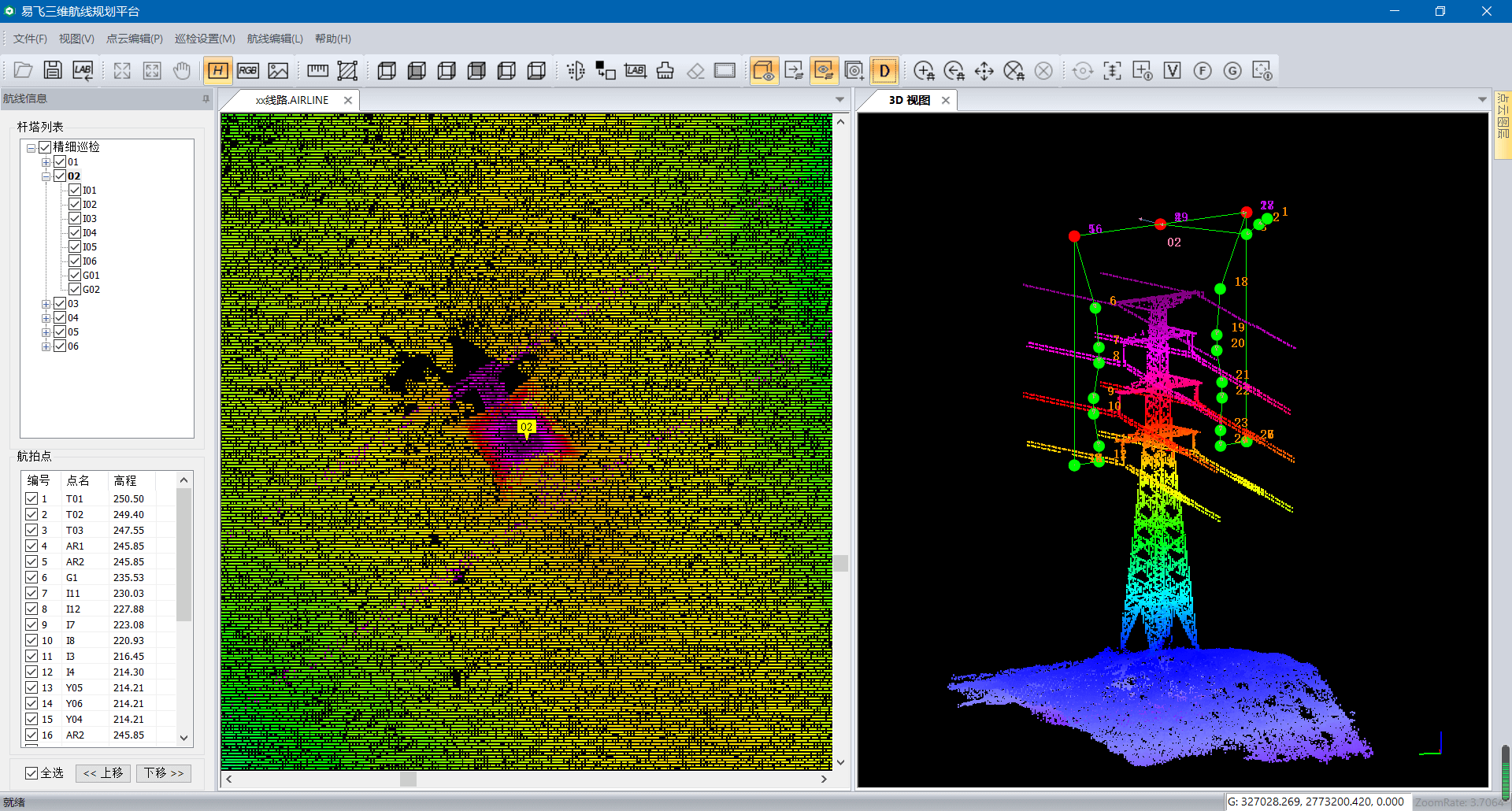

Simulating flight safety check
Simulating flight safety check
Fast loading of massive point clouds Automatic extraction of tower/line key components Automatic completing task planning of fine/channel Simulating flight safety check

Here comes the industry's first route template function with the efficiency increased by 100%

To further enhance the efficiency of route planning, the development of route template function is pioneered. It can be applied in batch for poles and towers of the same type. In case of complex type of poles and towers, there is no need to adjust individually, while poles and towers of the same type can be matched by the template with one key, doubling the efficiency.

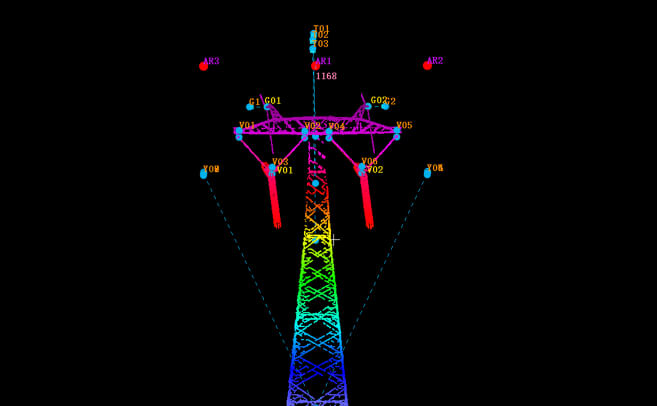

Almost 100% correct extraction of V-type insulator string/ground wire
Almost 100% correct extraction of V-type insulator string/ground wire
The system can automaticlly extract the V-type insulator string and ground wire of poles and towers with a remarkable correct rate up to nearly 100%.

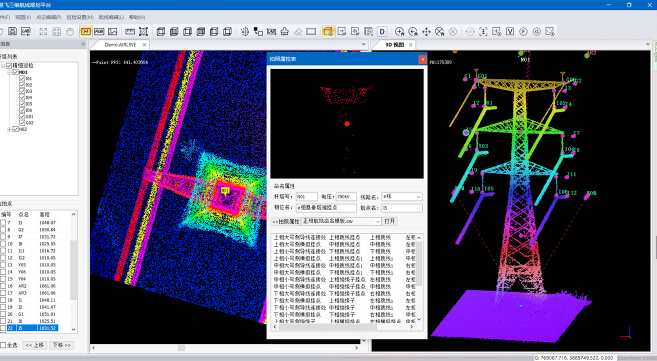

Just one small step to open a big world
Just one small step to open a big world

It supports imputation of photo POS points with spatial position of pole and tower structure, so as to quickly realize the renaming of transmission line photos.
